UHF/SMA/Antenna

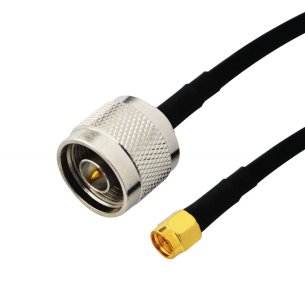

Low-Loss Coaxial Extension Cable (50 Ohm) SMA Male to N
Connector: All-copper SMA Male to N Male adapter.
Connect from SMA Equipment to N-Style Antennas, receivers, meters, radio transmitters and WiFi Signal Booster Repeater.
Low-Loss Coax, Impedance: 50 ohm. offers a significantly larger center conductor and supports better signal retention for longer cable runs and higher frequency use.
✔Double Shielded Coax extension cable assemblies are constructed with top quality extremely low-loss S-LMR240 cable and gold plated connectors. High frequency low loss and low impedance, heat Shrink on Both Ends.
✔Compatible with all SMA-based equipment including modems and routers & WiFi Signal Booster Repeater from Cisco, Digi, Cradlepoint, Proxicast, Pepwave, Sierra Wireless, Sixnet/Red Lion and many others
Connect from SMA Equipment to N-Style Antennas, receivers, meters, radio transmitters and WiFi Signal Booster Repeater.
Low-Loss Coax, Impedance: 50 ohm. offers a significantly larger center conductor and supports better signal retention for longer cable runs and higher frequency use.
✔Double Shielded Coax extension cable assemblies are constructed with top quality extremely low-loss S-LMR240 cable and gold plated connectors. High frequency low loss and low impedance, heat Shrink on Both Ends.
✔Compatible with all SMA-based equipment including modems and routers & WiFi Signal Booster Repeater from Cisco, Digi, Cradlepoint, Proxicast, Pepwave, Sierra Wireless, Sixnet/Red Lion and many others
Double shielded coaxial extension cable made of low loss pure copper coax cable.
Specifications:
- Connector 1: SMA Male plug 50 ohm
- Connector 2: N Male plug 50 ohm
- Length: 10 feet(3 Meters)
- Impedance: 50 Ohm
- Coax: Double shielded Low-loss diameter)
- Operating temperature : -40°C ~ +85°C.
- Minimum coiling diameter is only 1.5 inches.
- 90 degree bends in one inch or less without loss.
excellent cable for runs up to 25-30 feet in WiFi and Cellular use, and provides superior performance for HF/VHF/UHF installation up to 150 feet. The PE jacket used on S-LMR-240 makes it tougher and able to stand abrasion. Thin, flexible, light-weight S-LMR 240-sized coax makes installation easier, especially for tight bends.
Application:
Use to connect SMA radio sources such as modem, routers, WiFi Signal Booster Repeater, etc. to the female N connector found on many external fixed mount antennas (e.g. fiberglass omni-directional, directional panel, sector), receivers, meters and radio transmitters.
Specifications:
- Connector 1: SMA Male plug 50 ohm
- Connector 2: N Male plug 50 ohm
- Length: 10 feet(3 Meters)
- Impedance: 50 Ohm
- Coax: Double shielded Low-loss diameter)
- Operating temperature : -40°C ~ +85°C.
- Minimum coiling diameter is only 1.5 inches.
- 90 degree bends in one inch or less without loss.
excellent cable for runs up to 25-30 feet in WiFi and Cellular use, and provides superior performance for HF/VHF/UHF installation up to 150 feet. The PE jacket used on S-LMR-240 makes it tougher and able to stand abrasion. Thin, flexible, light-weight S-LMR 240-sized coax makes installation easier, especially for tight bends.
Application:
Use to connect SMA radio sources such as modem, routers, WiFi Signal Booster Repeater, etc. to the female N connector found on many external fixed mount antennas (e.g. fiberglass omni-directional, directional panel, sector), receivers, meters and radio transmitters.
